Aqua2use Underground Greywater System

Greywater Systems for Outdoor Irrigation. The Aqua2use UG GWDD is designed for large homes, schools and small commercial buildings.

Features of Aqua2use Greywater Systems

The Aqua2use Pro Greywater System comes with many features and benefits:

Large 50 gallons capacity
31.5″ Length x 23.6″ Wide x 26″ Height
Allows for greywater inlet connection of 2”up to 4”
System can be installed either above ground, half-submerged in ground, or under ground
Fully automated system
Built in overflow safety system
State of the Art Progressive 4 Stage Filtration
Built in dry run pump protection, preventing clogging and damage to the pump
Submersible pump with integrated Electronic Pump Controller(EPC)
Diverter valve included
Easy to clean – just hose the filters every six months
UV resistan

Aqua2use Greywater Systems

Aqua2use® UG GWDD is the best grey water recycling system designed for the professional Builder, Plumber or Renovator, it is ideal for under slab or buried applications.

The Aqua2use UG GWDD is capable of handling large volume of greywater, up to 25 gallons per minute. The system is using the same type of filtration as the Aqua2use GWDD, but it is made of a larger tank, certified compression strength for underground installation and it is using a stronger pump.

Large 260L capacity, 800 length x 600 wide x 623 height (mm)
Large 86gallons capacity, 31.5 length x 23.6 wide x 24.5 height (in)

Matala® 3D progressive filtration with 4 different porosities filter mats. A technology proven in more than 40 countries worldwide.

allows for connection of 50mm (2”) DWV up to 100mm (4”) DWV greywater waste pipe.

A Unique Filtration System

The Aqua2use Greywater System uses the Matala 3D progressive filtration technology:

State of the Art Progressive 4 Stage Filtration

Cross-Flow depth ﬁltration: each ﬁlter web has a 3-dimensional structure, able to trap a high volume of impurities without plugging.

Multichamber plug ﬂow concept: If the ﬁrst ﬁlter web gets clogged the ﬁltration is done by the 2nd and 3rd ﬁlter web. If the second web gets clogged, the ﬁltration is done by the 3rd ﬁlter web.

With its unique State of the Art Progressive 4 Stage Filtration system, the Aqua2use will remove all the lints and debris, and your greywater will be suitable to use with your drip irrigation syste

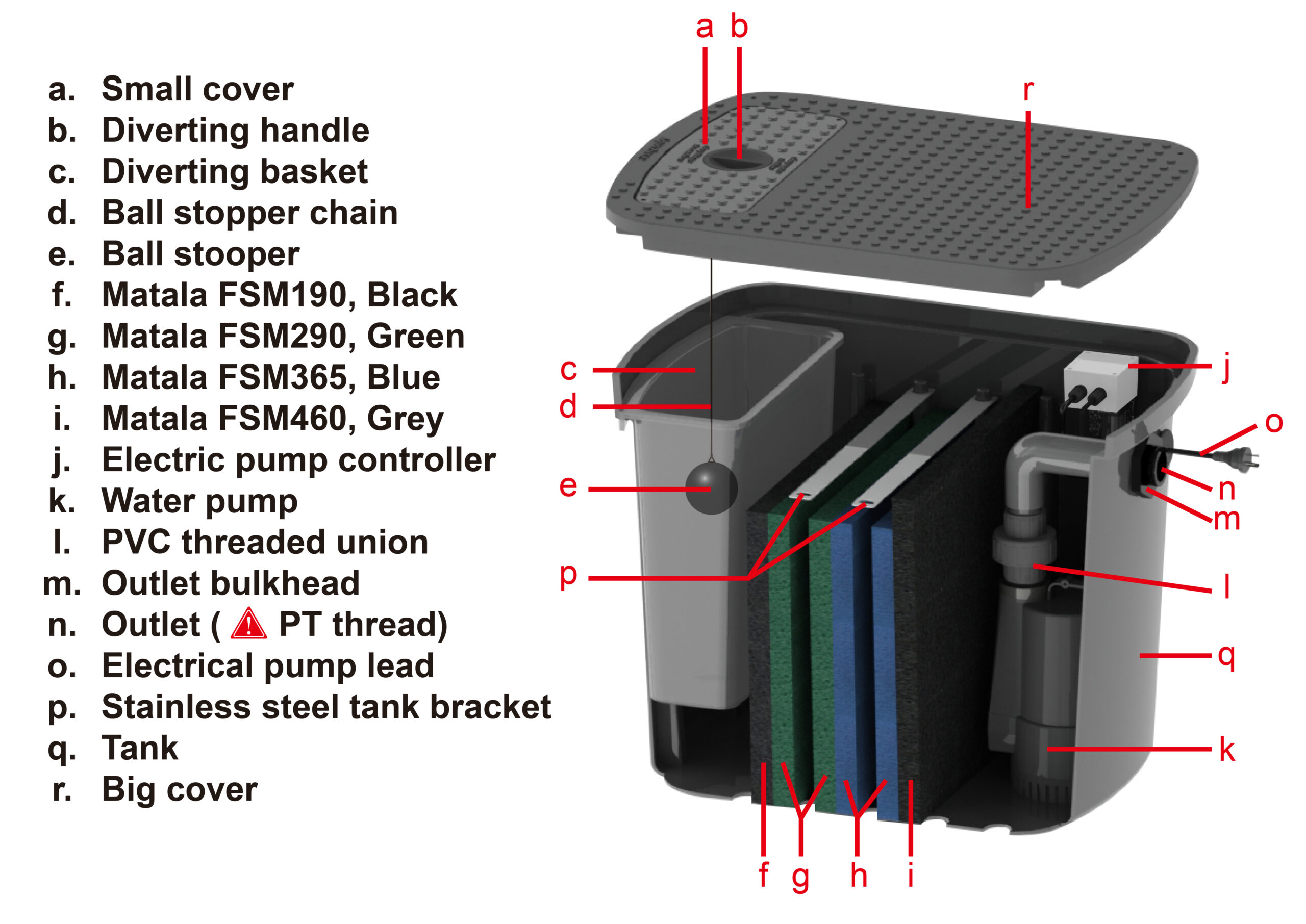

Figure: Transparent view showing all pipe connections

Figure: Top view of Aqua2use UG GWDD – example 4” connections

How Aqua2use® GWDD works!

Step 1: Collect
The Aqua2use GWDD diverts water from the laundry, wash basins, bath and shower.

Step 2: Filter
Aqua2use GWDD’s state of the art, long lasting filter mats offer the best filtration available for greywater.

Step 3: Flourish
The filtered water is immediately and automatically pumped via subsurface dripper irrigation to your plants keeping them healthy and green.

Aqua2use Greywater Systems

Aqua2use® greywater diverter captures pre-filters and diverts your water so it recycles bath, shower, wash basin and laundry water which can be used for your lawn and garden. It not only save water, but also reduce the energy for transporting full amount of wastewater to the sewage treatment plant and reduce the energy on pumping the potable water from water supply company to your house.

Therefore, it reduce the carbon dioxide emission, help on the global warming issues. And most of all, Aqua2use® GWDD is the best grey water recycling system and designed with the goal of simple installation, easy maintain and affordable cost. Your today’s action determined how the world is going to be tomorrow!

Aqua2use Greywater System Dimensions

The dimensions of the Aqua2use UG GWDD are the following:

Length: 32″
Width: 24″
Height: 26″
Length: 800mm
Width: 600mm
Height: 660mm

A Pump Designed for Greywater

The pump is different in 3 ways:

1.There is no single float to turn it on and off. There are two magnetic micro floats that activate the control box that senses the water level. This allows for the full capacity of the tank to be used, it allows for a full flow of water to be distributed thus filling your drip tube and importantly reaching the end of your drip tube line. It also means that the pump isn’t cycling (switching on and off) unnecessarily and that the full surface area of the filters are exposed to the incoming greywater.

2.The control box switches the pump on independently of the magnetic floats. This makes sure the minimum residual is remaining in the tank.

3.There are no external timers in the Aqua2use. Other units may have to rely on external timers to make sure any residual is pumped out within 24 hours. The Aqua2use control box automatically turns on the pump to see if there is any residual water.

Aqua2use UG GWDD pump performance and specifications

Aqua2use Greywater Filtration

Step 1:When the Aqua2use UG GWDD valve is open, greywater flows directly to the mains sewage.

Step 2:When the Aqua2use UG GWDD valve is closed, greywater from the house is diverted to the inlet of the filter.

Step 3:The greywater flows through the 1st filter web that retains major and medium particles such as hair, lint, paper, detergent clogs and other impurities. (The filter web: Matala Black – low density, Matala Green – medium density)

Step 4:The greywater flows through the 2nd filter web that retains medium and small particles. (The filter web: Matala Green – medium density, Matala Blue – high density)

Step 5:The greywater flows through the 3rd filter web that retains small and minor particles. (The filter web: Matala Blue – high density. Matala Gray – super high density)

Step 6:Filtered greywater is pumped to the irrigation.

What is a Aqua2use® GWDD?

The Aqua2use GWDD is the most advanced Grey Water Diversion Device available.
It is designed to help you reuse your waste water from your laundry, bath and shower.

How does it work?

It simply diverts grey water from your waste pipe and then filters the water as it passes through the Matala Patented 3-Dimensional Progressive Filter mats.
Then the level detecting pump pumps the water into your irrigation system.
This all happens automatically.

What can I connect my unit to?

The Aqua2use^® GWDD is designed to connect to the discharge pipe from the laundry, shower and bath.

What do I need before I connect my unit?

You will need a power (110 voltage or 240 voltage) outlet.
And you need to be able to access your waste plumbing pipes (50mm or 2”.)

Why can’t I connect my sink in the kitchen?

It is not advisable to try to reuse sink water. This water may contain many nutrients, food particles, oil and harsh detergents all are not suitable for reuse. Sink water is considered to be Black Water and should go to waste.

Is the Aqua2use® GWDD an Approved Grey Water Device.

Yes it has the Australian Water Mark for a Pumped system and a Gravity system.
And is approved by EPA in NSW, Queensland, Victoria, Northern Territory, Western Australia, South Australia, and ACT.

For other countries, please contact us for information.

Why is the Aqua2use® GWDD different to other Grey Water Diversion Devices?

The Aqua2use^® GWDD is a designed to be the most efficient and advanced Grey Water Diversion Device available on the market. It is solely aimed at the professional licensed installer, to make it easy and simple to disperse the waste water through a sub surface drip system. This is so we can make full use of the waste water from the shower, laundry and bath.
The concept was to build a compact economical unit that met the full requirements of State and Government water authorities.

Thanks to the Matala depth filtration, the unit is extremely efficient in progressive filtration and it can hold 10kg of solids without clogging the filter.(less frequent clean.)
And secondly by filtering the waste water to make it suitable for drip irrigation application.
There are no external timers in the Aqua2use^® GWDD. Other units have to rely on external timers to make sure any residual is pumped out within 24 hours. The Aqua2use^® GWDD has a timer function integrated in the electronic pump control.
Designed to have the lowest residual water level possible.

How often do I have to replace or clean the filters?

The filters are designed to be cleaned over and over so you don’t need to replace them.
Testing in the field has show that up to 60,000 litres (15,850 galloen) can pass through the unit before they need cleaning. Recommended cleaning cycle depending on how many people are using the system is every 4-6 months. Dispose of waste thoughtfully and wear protective gloves when cleaning.

What is the guarantee?

All parts and the pump are covered by a 12 month replacement warranty.
You will have to return your warranty claim at the place of purchase.

How efficient are the filters?

The Aqua2use^® GWDD has over 10m2 of surface ensuring the best filtration available for recycled Grey Water.
Standard type of filtration such as mesh filters are prone to blocking by the nature of what is in Grey Water. Lint is especially good at blocking single dimensional screen filters.
Independent laboratory tests have shown that the Aqua2use^® GWDD can remove up to 90% of suspended solids.

Why don’t you use a low voltage pump?

Low voltage pumps have a limited service life and generally won’t do the hours required expected in this type of installation.

Who can service the pump?

The pump can be serviced by the plumber that installed your unit.

Who do I get to install this unit?

All Aqua2use® GWDD authorized dealers, to find out more information check our distributors listed on the web www.aqua2use.com purchase Or call your local licensed plumber.

What rebates are available for this?

Rebates differ from state to state countries to countries. Please check our distributors or dealers nearby you.

What is the best way to disperse the Grey Water?

One of the best and easiest ways is to use a grey water drip tube.
This will be lilac in colour and have special inbuilt drippers that can handle grey water.
We recommend the lilac drip tube (25mm) followed by Bioline 17mm drippline from Netafim.
Each garden has different requirements. Your installer should advise you on this.

How much drip tube do I need?

The recommendation is 100 metres (328 feet) per person in the house.
100 metres (328 feet) equals 40 litres (10 gallons) per minute.

Do I have to use a pump in this system?

If you have enough fall on your site this unit will work without a pump.
The Aqua2use^® GWDD is registered as a gravity greywater device.
Generally speaking you will need a minimum of 2 metres (6.6 feet) in height to effectively operate the G Drip tube. So designing the system correctly to operate on gravity is critical.

Can I store the water once it has been through the Aqua2use® GWDD?

It is not advisable to store grey water from any Grey Water Diversion device for more than 24 hours.

How much water does my unit save me?

Independent tests have shown you can expect to save approx 113 litres (30 gallons) per person per day.

How big is the surge tank of the Aqua2use GWDD?

The total capacity of the tank is 80 litres (21 gallons).

Does this unit break down in the sun?

No it is made of UV resistant High Grade Poly Ethylene.

Can the unit handle hot water?

Yes the pump and filters can handle water at elevated temperatures.
Boiling water should not be discharged in to any Grey Water Diversion Device.

Can the unit overflow?

No the unit has an inbuilt overflow so if you accidentally leave the power switched off to your unit it will simply send the water to waste. This is a requirement of the Watermark and all water authorities.

Can I buy spares for my unit?

Spare filters are available from your distributor as are all other parts in the unit.

Can I bury this unit?

You are able to partially bury the unit. The maximum depth is 400mm (15.7 inch).
It you need to bury the unit more than this we recommend that you install the unit inside a suitable pit. Remember that you will need to access the lid for removal and cleaning of the filters. Or you may choose the Aqua2use^® GWDD UG which is designed especially for underground installation.
